B2418M

Output Power 輸出功率: 1W~6W

Weight 重量: 30g (Approx.)

Brushless DC Motor-Typical Application 直流無刷電機-典型應用

Automotive Parts: Micro Pump, Valve   汽車部件：微型泵，閥

Home Application: White Goods, Small Appliance, Small Fanner,

Electric Cooker

家用電器：白色家電，小家電，小型風扇，電飯煲

Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine

醫療器械：醫療泵，醫用攪拌器，離心機

Industry Apparatus: Electric Valve, Portable Screwdriver,

Air/Water/Vacuum Pumps

工業設備：電動閥門，手持電批，氣泵，水泵，真空泵

Business Equipment: Scanner, Cash Register, Card Sender

商業設備：掃描儀，點鈔機，發卡機

Personal Care: Hair Curler, Hair Straighter, Hair Dryer, Electric Shaver,

Massager,Vibrator

個人護理：卷發器，風筒，電動須刨，按摩器，直發器，震動器

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B2418M-S01

5-12

6

10300

0.19

2.45

7800

0.67

2

11.6

2.22

B2418M-S02

8-26

12

6520

0.08

2.45

4660

0.24

1.2

8.4

0.65

B2418M-S03

8-26

12

12420

0.127

2.94

9580

0.43

2.96

12.8

1.47

B2418M-S04(N10)

8-26

24

12550

0.065

5.89

9200

0.39

5.64

22.4

1.24

B2418M-S05

8-26

24

8660

0.055

2.94

6690

0.169

2.06

12.8

0.55

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

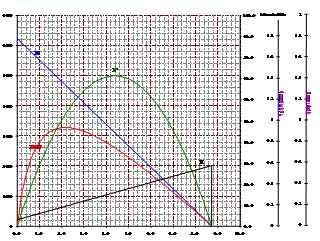

B2418M-S02                 12V

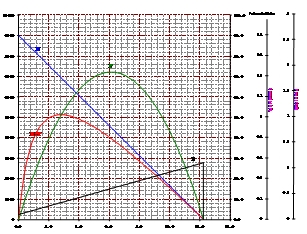

B2418M-S04                 24V
