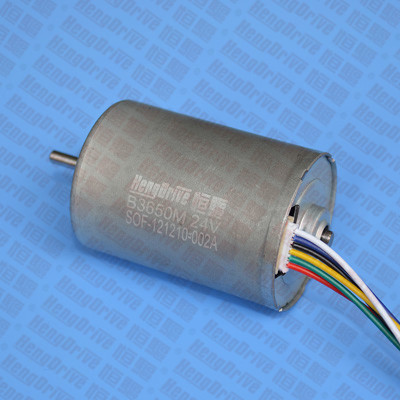

B3650M直流無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B3650M |
Output Power 輸出功率: 5W~80W |
Weight 重量: 180g (Approx.) |
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Automotive Parts: Pump, Fan 汽車部件：泵、風機 Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine 家用電器：白色家電，小家電，風扇，咖啡機，奶茶機 Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine 醫療器械：醫療泵，手術器械，攪拌器，離心機 Industry Equipment: Pump, Portable Screwdriver, Small Compressor 工業設備：泵，手持電批，小型壓縮機 Business Equipment: Printer, Copier, Projector, ATM, Vending Machine 商業設備：打印機，復印機，投影機，ATM機，售賣機 Personal Care: Hair Dryer, Electric Shaver, Massager 個人護理：風筒，電動須刨，按摩器 |
|||
|
Model 型號 |
Voltage(V) 電壓 |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B3650M-S01 |
8-26 |
12 |
5300 |
0.46 |
23.5 |
4600 |
1.53 |
11.35 |
77.8 |
2.5 |
|
B3650M-S02 |
8-26 |
24 |
13800 |
0.32 |
30.0 |
10500 |
1.99 |
35.69 |
103.7 |
3.0 |
|
B3650M-S03 |
8-26 |
24 |
4327 |
0.18 |
45.0 |
3714 |
1.01 |
17.49 |
316.8 |
2.5 |
|
B3650M-S04 |
8-26 |
24 |
19400 |
0.44 |
18.0 |
17300 |
1.80 |
32.6 |
75.9 |
3.0 |
|
B3650M-S05 |
8-26 |
24 |
28518 |
0.64 |
32.37 |
23172 |
4.73 |
78.56 |
171.42 |
6.00 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs
特征：雙轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |
Outline Drawing 外形圖:
|
Usable machine screw length 4.0mm max. from motor mounting surface |
Unit: Millimeter |
Performance Curve 性能曲線:
|
B3650M-S03 24V |
B3650M-S05 24V |
