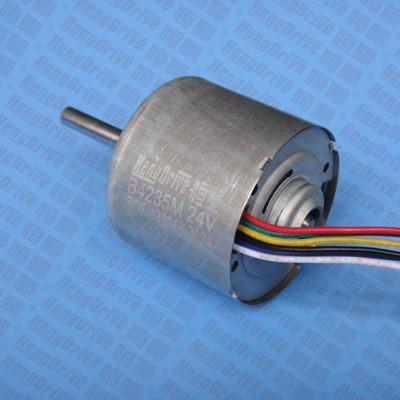

B4235M 無刷直流電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時。
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B4235M |
Output Power 輸出功率: 5W~35W |
Weight 重量: 160g (Approx.) |
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Automobile Parts: Pump, Fan 汽車部件：泵，風機 Home Application: White Goods, Small Appliance, Fanner, Coffee Machine Milk Tea Machine 家用電器：白色家電，小家電，無風葉電風扇，有風葉風扇，咖啡機，奶茶機 Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, Centrifugal Machine 醫療器械：醫療泵，手術器械，攪拌器，離心機 Industry Equipment: Electric Valve, Actuator 工業設備：電動閥門，致動器 Business Equipment: ATM, Vending Machine 商業設備： ATM機，售賣機 Personal Care: Hair Dryer, Massager, Vibrator 個人護理：風筒，按摩器，震動器 Power Tools: Screwdriver, Drill, Air Compressor 電動工具：電動螺絲批，電鉆，氣體壓縮機 |
|||
|
Model 型號 |
電壓 Voltage(V) |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B4235M-S01 |
8-26 |
12 |
2860 |
0.21 |
40.2 |
2050 |
1.16 |
8.62 |
141.0 |
2.5 |
|
B4235M-S02 |
8-26 |
24 |
6370 |
0.30 |
35.0 |
5100 |
1.17 |
18.72 |
175.8 |
2.5 |
|
B4235M-S03 |
8-26 |
24 |
9400 |
0.53 |
18.05 |
8530 |
1.16 |
16.12 |
194.9 |
2.5 |
|
B4235M-S04 |
8-26 | 24 | 5539 | 0.25 | 55.03 | 4393 | 1.41 | 25.31 | 264.3 | 2.5 |
|
B4235M-S05 |
8-26 |
24 |
8455 |
0.33 |
40.0 |
7580 |
1.64 |
31.75 |
386.8 |
2.5 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs 特征：雙轉向，信號功能，無級調速，低噪音，低電磁干擾，超長壽命10000-50000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

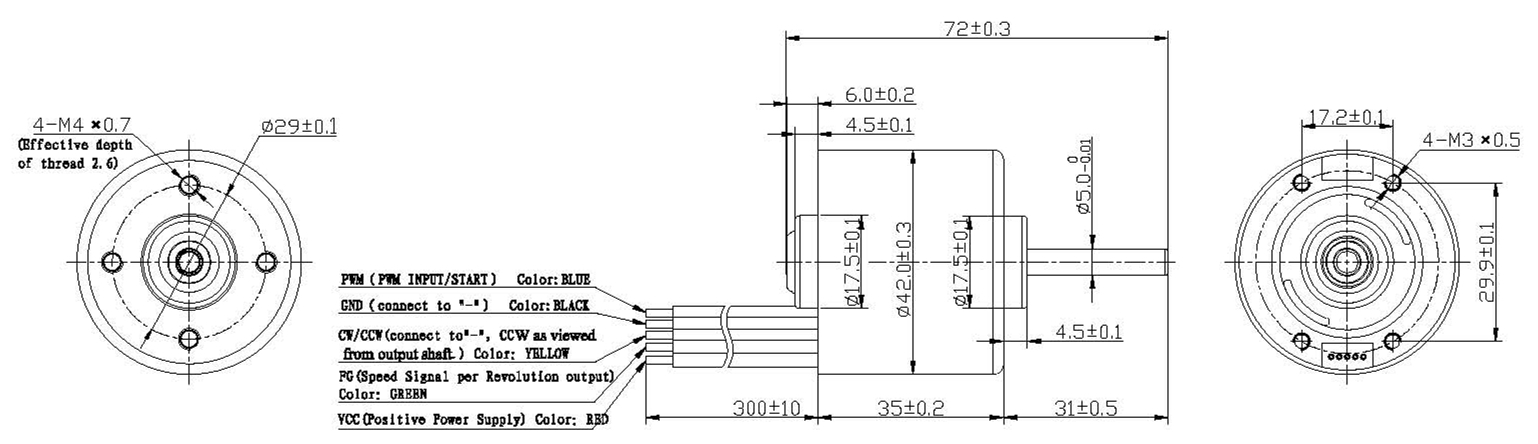

Outline Drawing 外形圖:
|
Usable machine screw length 4.0mm max. from motor mounting surface |
Unit: Millimeter |
Performance Curve 性能曲線:
|
B4235M-S02 24V |
B4235M-S04 24V |
