B2934F 超高速無刷直流風機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：單轉向，信號功能，鎖定保護，3檔調速，低噪音，低電磁干擾，壽命1200小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B2934F |
Output Power 輸出功率: 10W~130W |
Weight 重量: 105g (Approx.) |
|
Super High Speed Brushless DC Fan--Typical Application 超高速無刷直流風機-典型應用 Personal Care: Hair Dryer, Hair Curler 個人護理：電吹風，卷發器 Home Application: Vacuum Cleaner 家用電器：吸塵器 Medical Apparatus: High-speed Fan, High-speed Air Pump 醫療器材：高速風機，高速氣泵 Industry Facilities & Business Equipment: High-speed Fan, High-speed Air Pump |
|||
|
Model 型號 |
Voltage(V) 電壓 |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Switch |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B2934F |
AC100~245 |
AC110 AC220 |
112000 |
- |
S1 |
80000 |
0.56 |
72 |
- |
1.2 |
|
S2 |
90000 |
0.63 |
83 |
|||||||
|
S3 |
100000 |
0.76 |
95 |
|||||||
Characteristic: CW, Signal function available, Locked rotor protection, three speed regulation, Low noise, Low EMI, life span 1200hrs 特征：單轉向，信號功能，鎖定保護，3檔調速，低噪音，低電磁干擾，壽命1200小時
|
Notice: Data in this typical specification sheet are the standard version, it is recommended to be used directly. |

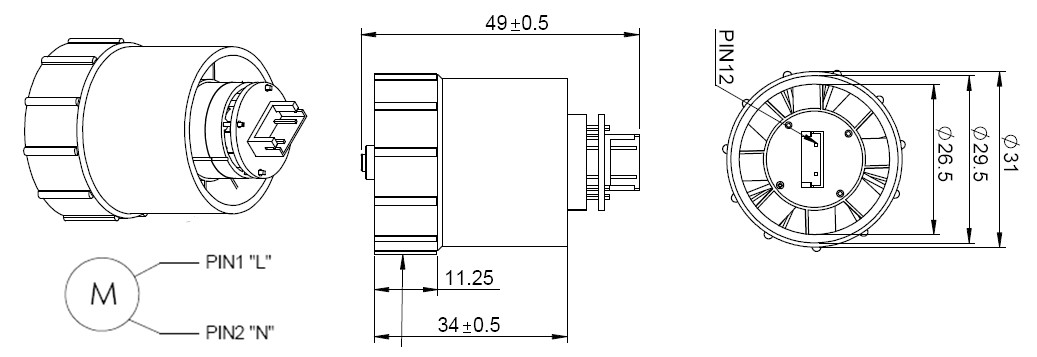

Outline Drawing 外形圖: (The housing is made of silica gel. 電機外殼為硅膠材質。)
|
Usable machine screw length |
|
.png)
Performance Curve 性能曲線:
|
B2934F-S01 AC220V |
|
