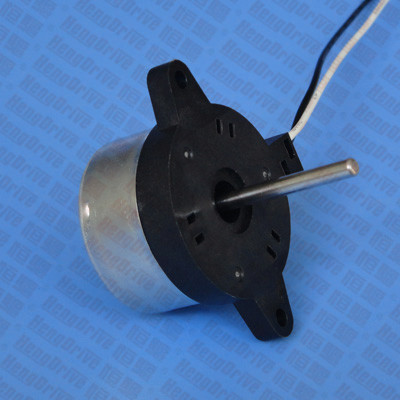

B3020S外轉子無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：三相外轉子無刷電機，超低噪音、超長壽命、超高效率、超優EMC，廣泛適用于空氣清新機、氣體過濾器、小功率風扇、增濕器等。
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B3020S |
Outer Rotor |
Output Power 輸出功率: 0.3W~12W |
Weight 重量: 75g (Approx.) |
|
外轉子 |
||||
|
3-Phase Brushless DC Motor-Typical Application 三相無刷直流電機-典型應用 Automotive Parts: Micro Fan 汽車部件：小型風扇 Home Application: Small Electric Fanner, USB Fan, Small Air Fresher, Electric Cooker 家用電器：小功率電風扇，USB電風扇，小功率空氣清新機，電飯煲 Medical Apparatus: Medical Pump, Medical Blower, Super-Silence Fan 醫療器械：醫療泵，鼓風機，超靜音風扇 Industry Equipment: Electric Valve, Actuator 工業設備：電動閥門，致動器 Business Equipment: Printer, Copier, Projector 商業設備：打印機，復印機，投影機 Personal Care: Shaver, Hair Dryer, Massager 個人護理：電動剃須刀，風筒，按摩器 |
||||
|
Model 型號 |
電壓 Voltage(V) |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B3020S-S01 (RU-M) |
5-12 |
5 |
4600 |
0.26 |
1.472 |
4150 |
0.36 |
0.64 |
15.12 |
0.9 |
|
B3020S-S02(NdFeB) |
5-12 |
5 |
3060 |
0.19 |
6.308 |
2130 |
0.42 |
1.41 |
20.56 |
0.9 |
|
B3020S-S03 (RU-M) |
8-26 |
12 |
11450 |
0.17 |
4.433 |
8530 |
0.49 |
3.96 |
17.39 |
0.85 |
|
B3020S-S04(NdFeB) |
8-26 |
12 |
7090 |
0.19 |
9.391 |
5440 |
0.63 |
5.35 |
40.54 |
0.85 |
|
B3020S-S05 (RU-M) |
8-26 |
24 |
14680 |
0.11 |
5.886 |
7810 |
0.37 |
4.82 |
12.57 |
0.75 |
|
B3020S-S06(NdFeB) |
8-26 |
24 |
11450 |
0.15 |
10.864 |
9050 |
0.57 |
10.30 |
51.89 |
0.75 |
|
B3020S-S07(NdFeB) |
8-26 |
12 |
2330 |
0.085 |
6.00 |
1884 |
0.21 |
1.18 |
31.38 |
0.85 |
Characteristic: CW or CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs
特征：單轉向，信號功能，鎖定保護，無級調速，低噪音，低電磁干擾，超長壽命10000-30000小時
|
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |

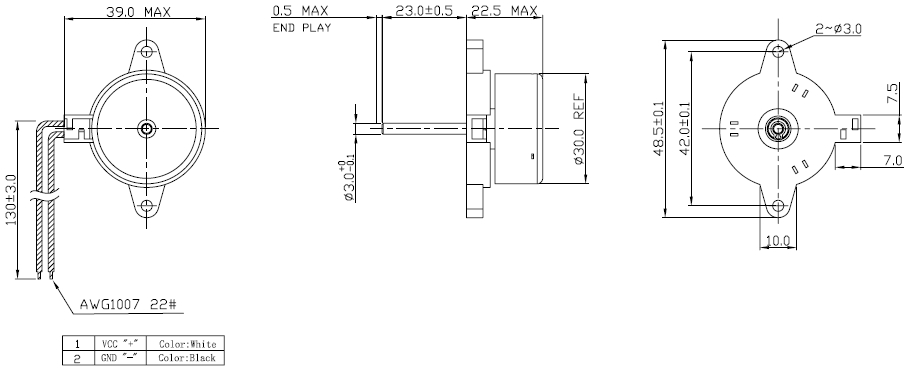

Outline Drawing 外形圖: (Unit: Millimeter)
Performance Curve 性能曲線:
|
B3020S-S01 5V |
B3020S-S05 24V |
