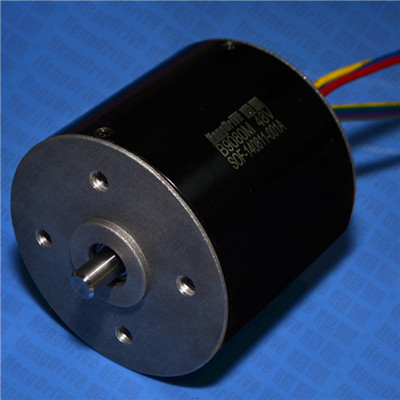

B9080M 直流無刷電機
- 所屬分類：[全部恒驅直流無刷電機]
- 產品簡介：特征：雙轉向，信號功能，鎖定保護，無極調速，低噪音，低電磁干擾，超長壽命10000-50000小時
- 訂購熱線：400-0755-631
- 下載資料：資料下載
|
|
B9080M |
Output Power 輸出功率: 150W~600W |
Weight 重量: 1200g (Approx.) |
|
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Automobile Parts: Auto Pumps, Fan, Electro Carrier, Auto Actuator 汽車部件：汽車泵，風機，電動小車，汽車致動器 Home Application: Electric Window, Electric Door, Blender, Shredder, Meat Grinder 家用電器：電動窗，電動門，攪拌機，絞肉機，粉碎機 Medical Apparatus: Medical Bed, Electric Wheel Chair, Surgery Tools, Operating Table, 醫療器械：醫療床，電動輪椅，手術器械，手術臺，離心機 Power Tools: Screwdriver, Drill, Air Compressor 電動工具：電動螺絲批，電鉆，氣體壓縮機 Industry Equipment: Power Machine, Transmission gear equipment 工業設備：動力、傳動設備 Personal Life Product: Massager, Sport Apparatus 個人生活產品：按摩器，運動器材 |
|||
|
Model 型號 |
Voltage(V) 電壓 |
No Load 空載 |
Rated Load 額定負載 |
Stall 堵轉 |
||||||
|
Operating Range |
Rated |
Speed (rpm) |
Current (A) |
Torque (mNm) |
Speed (rpm) |
Current (A) |
Output P. (W) |
Torque (mNm) |
Current (A) |
|
|
B9080M-S01 |
8-26 |
24 |
3380 |
0.74 |
500 |
2820 |
7.75 |
147.5 |
3002 |
30 |
|
B9080M-S02 |
8-26 |
24 |
2901 |
0.73 |
1000 |
2261 |
11.38 |
236.8 |
4501 |
30 |
|
B9080M-S03 |
8-26 |
24 |
5974 |
1.03 |
800 |
4782 |
20.73 |
400.6 |
4009 |
50 |
|
B9080M-S04 |
8-26 |
24 |
5986 |
1.03 |
1300 |
4412 |
33.05 |
600.6 |
4943 |
50 |
|
B9080M-S05 |
8-26 |
24 |
3400 |
1.73 |
1801 |
2481 |
26.76 |
468.1 |
6664 |
50 |
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-50000hrs 特征：雙轉向，信號功能，鎖定保護，無極調速，低噪音，低電磁干擾，超長壽命10000-50000小時
|
Notice: Data in this typical specification sheet are for other certain customer, the specific BLDC motor performance and dimension can be changed by adjusting winding, magnetic field, controller parameter and relevant mechanical factor to meet different customer requirement. 注意：上述規格僅針對特定客戶，對于您的特殊要求，可以通過調整繞組、磁場、控制參數和相關機械參數來達到您的不同要求。 |

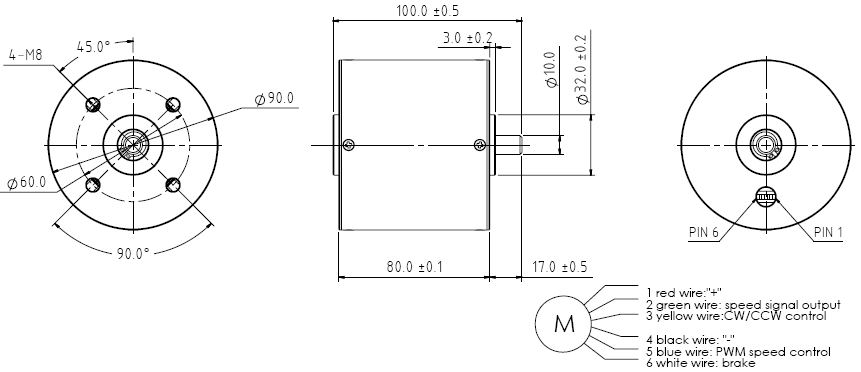

Outline Drawing 外形圖:
|
Usable machine screw length 8.0mm max. from motor mounting surface |
Unit: Millimeter |

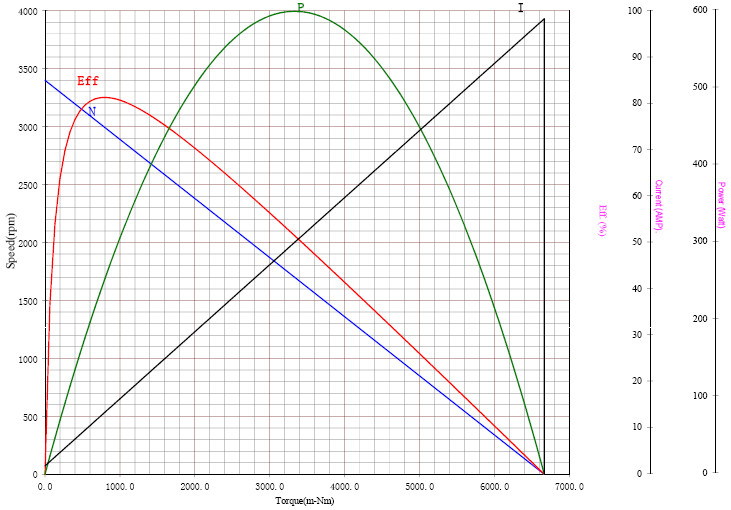

Performance Curve 性能曲線:
|
B9080M-S02 24V |
B9080M-S04 24V |
